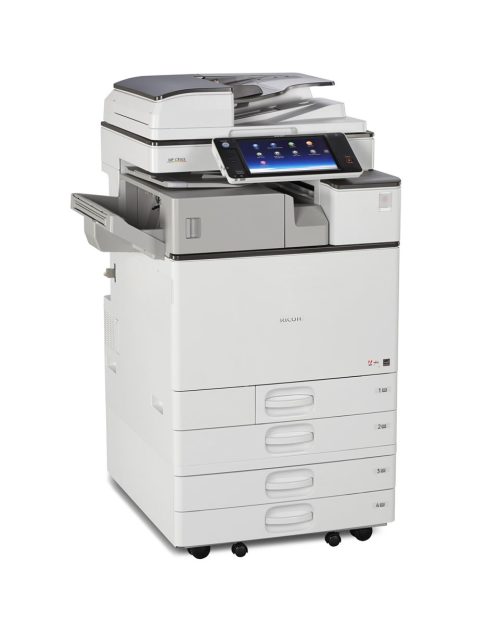

The Ricoh MP C3503 is a multifunction color copier, printer, scanner and fax. The Ricoh MP-C3503 copier has an output speed of 35 ppm in both monochrome and color. The Aficio MPC3503 features a copy resolution of 600 dpi. The Ricoh Aficio MPC3503 recovers from sleep mode in less than 10 seconds.
Main Features
General Features
- The MP C3503 includes a host of features for an incredibly low TEC value*. It can be programmed to power on and off with a Weekly Timer to conserve energy when not in use. (*Source: ENERGY STAR Imaging Equipment Product List posted on June, 19, 2013.)
- This powerful and innovative MFP delivers high-quality, monochrome or color output at up to 35 ppm for incredible throughput.
- It recovers from sleep mode with a fast, less than 10-second recovery time to preserve resources and productivity.
- The MP C3503 features a 100-Sheet Automatic Reversing Document Feeder (ARDF).
- Select the Internal Finisher to save floor space or choose from a wide range of external finishers to expedite workflow.
- The innovative PxP® toner melts at lower temperatures, requires less energy and minimizes operating costs. In addition, automatic duplexing minimizes paper consumption and operating costs.
- The MP C3503 comes standard with a large 9″, tiltable Color Control Panel with a customizable home screen and the ability to create one-click shortcuts for frequently used applications.
- The Auto Drawer feature completes the paper tray retraction automatically once the user begins to push the drawer closed.
- Paper capacity is an astounding 4,700 sheets with optional sources and the standard paper tray accepts a wide range of paper sizes, including envelopes.
- Users can also work more efficiently by copying the front and back sides of identification cards and other documents onto one side to save paper and time.
Mobile Features
- The MP C3503 can print from many mobile devices, including smartphones, tablets or laptops, without device-specific drivers for incredible on-the-go convenience.
- For organizations seeking even more secure mobile printing, the optional Ricoh HotSpot® MFP, or Ricoh HotSpot® Enterprise server software can be installed to help improve mobile productivity without compromising data, document or user security.
- Users can print JPEGs, TIFFs and PDFs using a USB drive or SD card right at the device without LAN access or native applications.
Printer Features
- Ideal for graphics-intensive environments, the controller offers exceptional enhanced spot-color reproduction with RGB, CMYK and PANTONE® colors.
- Its easy-to-use Command WorkStation utility simplifies even the most complex print tasks, so documents can be created, reprinted or combined with ease.
* Available Fall 2013
Fiery Features (Optional)
- The optional built-in Web browser connects to Ricoh’s Integrated Cloud Environment (ICE) so users can scan documents, share files, print on the move and more without expensive, onsite software solutions.
- With optional embedded OCR, users can retrieve documents quickly by searching for specific words in PDF text in up to 14 languages.
- Take advantage of centralized Distributed Scan Management (DSM) while following specific preferences and rules to automate document tasks and improve productivity.
- Monochrome and color scanned documents can be sent to multiple recipients with Scan-to-Email/Folder/URL/FTP.
- Compress file sizes for full-color scans and send them easily without compromising image quality.
- Take advantage of a wide range of optional software, including GlobalScan® NX and eCopy® to integrate advanced capabilities into personalized workflows and simplify the most complex tasks.
Scanner Features
- Optional 10.1″ Wide Super VGA Smart Operation Panel offers the functionality and performance of today’s smartphones and tablets. Featuring drag-and-drop, pinch-and-flick functionality and swipe scrolling, it allows users to quickly move from one task to the next with unprecedented ease.
- It includes convenient widgets for quick updates on the date, time and toner levels. The new panel also offers advanced Web Browser functionality on par with today’s personal computers.
- The new Quick User Interface feature simplifies the choices for the most frequently used functions for Copy, Scanner and Fax. They can be used with intuitive touch gestures, such as flicking to select addresses, and pinching to zoom in or pan out on a preview.
- For workgroups requiring enhanced feature functionality, it is easy to switch between the Quick User Interface functions and the traditional user interface.
Security Features
- The MP C3503 includes user authentication to help prevent unauthorized access.
- It enables users to store documents at the MFP until an ID card is swiped or password is entered to release them. A watermark can be added to confidential documents that will appear when unauthorized users attempt to copy them.
- Encrypted PDF transmission scrambles data on confidential PDFs to help prevent unauthorized access. In addition, the MFP includes the standard DataOverwriteSecurity System (DOSS) that automatically overwrites any files on the hard drive to render them unreadable.
- HDD encryption adds another layer of protection against hackers.
Smart Operational Panel Features
- Optional 10.1″ Wide Super VGA Smart Operation Panel offers the functionality and performance of today’s smartphones and tablets. Featuring drag-and-drop, pinch-and-flick functionality and swipe scrolling, it allows users to quickly move from one task to the next with unprecedented ease.
- It includes convenient widgets for quick updates on the date, time and toner levels. The new panel also offers advanced Web Browser functionality on par with today’s personal computers.
- The new Quick User Interface feature simplifies the choices for the most frequently used functions for Copy, Scanner and Fax. They can be used with intuitive touch gestures, such as flicking to select addresses, and pinching to zoom in or pan out on a preview.
- For workgroups requiring enhanced feature functionality, it is easy to switch between the Quick User Interface functions and the traditional user interface.
- General Specifications
Printing Process 4-Drum Method Output Speed (Copy/Print) 35-ppm B&W & FC (LTR) Warm-Up Time Less than 20 seconds Recovery from Sleep Mode Less than 10 seconds First Copy Time (FC/B&W) 7.1/4.6 seconds Copy Resolution 600 dpi Quantity Indicator Up to 999 copies Document Feeder Automatic Reversing Document Feeder (ARDF) Original Capacity: 100 sheets
Original Size: 5.5″ x 8.5″ – 11″ x 17″
(A5 – A3)
Paper Weight:
Simplex: 11 – 34 lb. Bond (40 – 128 g/m²)
Duplex: 14 – 34 lb. Bond (52 – 128 g/m²)Auto Duplex Standard Output Capacity Standard: 500 sheets
Maximum: 1,625 sheetsZoom 25% – 400% in 1% increments Dimensions 23.1″ x 27.0″ x 35.9″ (587 x 685 x 912 mm) Weight 205.1 lbs. (93.1 kg) Power Requirements 120V – 127V, 60Hz, 12A Power Consumption 1,584W or less TEC Value 1.32 kWh/week* Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test ProcedurePrinter Specifications (Standard)
CPU PMC-Sierra RM7035 600 MHz Memory 1.5 GB RAM/250GB HDD Standard & 2GB RAM/250 GB HDD Maximum Page Description Languages Standard: PCL5c, PCL6, PDF Direct Print, Media Print & XPS
Optional: Adobe PostScript3, IPDS & PictBridgeFont Support Standard: PCL: 45 Scalable fonts + International 13 fonts
Optional: PostScript 3: 136 Roman fonts;
IPDS: 108 Roman fontsMax Print Resolution 1200 x 1200 dpi Network Interfaces Standard: 1000Base-T/100Base-TX/10Base-T Ethernet, USB2.0 Type A
(3 Ports), USB2.0 Type B & SD Slot on Operation PanelNetwork Protocol Support TCP/IP (IPv4, IPv6), IPX/SPX* Network/OS Windows XP/Vista/7/8/Server 2003/
Server 2008/Server 2008R2/Server
2012, Netware 6.5*
Unix; Sun Solaris, HP-UX, SCO
OpenServer, RedHat Linux, IBM AIX,
Mac OS X v.10.5 or later,
SAP R/3, NDPS Gateway,
IBM iSeries AS/400-using OS/400
Host Print TransformUtilities Web SmartDeviceMonitor, Web Image Monitor, @Remote™ * Netware Option is required.Document Server Specifications (Standard)
Max. Stored Documents 3,000 documents Max. Page Capacity 9,000 pages Scanner Specifications (Standard)
Supported File Formats Single/Multi-Page TIFF, PDF, High Compression PDF & PDF/A Single Page JPEG Scan Modes Scan-to-Email (with LDAP support)
Scan-to-Folder (SMB/FTP/NCP*)
Scan-to-URL
Scan-to-Media (USB/SD Card)
Network TWAIN Scanning*Netware option is requiredScanner Specifications (TWAIN) (Standard)
Scanner Resolution B&W and FC scanning at 100 – 600 dpi, Up to 1200 dpi for TWAIN scanning Scanning Speed (B&W & Color LTR) 200/300 dpi: 79 ipm Scan Area 11.7″ x 17″ (297 mm – 432 mm) Compression Method B&W: MH, MR, MMR, JBIG2, JPEG Color: JPEG Facsimile Specifications (Optional)
Type Fax Option Type M3 Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi (with optional SAF memory) Modem Speed 33.6K – 2,400 bps w/Auto Fallback Compression Method MH, MR, MMR, JBIG Transmission Speed G3: Approximately 2 seconds/page (JBIG) Scanning Speed Up to 68 spm Autodials 2,000 Quick/Speed Dial numbers; 100 Group Dial numbers Memory Capacity (SAF) Standard: 4 MB (approx. 320 pages), Optional: 28 MB (approx. 2,240 pages) with optional SAF memory Security Features
DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more
